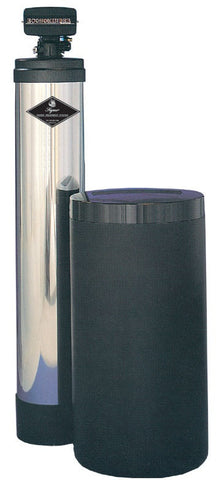

SuperAir SN-WS-2000FM Water Softener
  • SuperAir SN-WS-2000FM Water Softener
SuperAir SN-WS-2000FM Water Softener - is currently on backorder. You may still purchase now though and we'll ship as soon as more become available.

Features:

  • Solid state microprocessors with easy access front panel settings
  • Three modes of operation; meter immediate, meter delayed, or time clock delayed
  • Double backwash feature offers optimum regeneration, cleaning ability and efficiency
  • 36 selectable pre-progammed regeneration cycles
  • Days override feature; 1-28 days available
  • Backwash and brining ability to 22" diameter tanks
  • Downflow regeneration
  • Stores system configuration and operation data in nonvolatile memory
  • Coin Cell Lithium battery back-up with an 8 hour carry over
  • 12-volt output AC Adapter provides safe and easy installation
  • Control valve design provides optimum service and backwash rates
  • Treated water regenerant refill
  • Reliable and proven DC drive





    Water Specialist 1.25” Control Specifications

    Inlet/Outlet Fittings........................................................ 3⁄4" to 1.0”                               NPS Cycles ...................................................................................... up to 6
    Valve Material ................................................................................ Noryl (1) or equivalent Regeneration ............................................................................................ downflow

    Flow Rates

    Service @15 psi drop (includes meter)........................................ 34 gpm                 Backwash @ 25 psi drop ............................................................. 32 gpm (2)

    Cv Service .................................................................................... 8.8
    Cv Backwash ............................................................................... 6.4

    Operating Pressures

    Minimum/Maximum ..................................................................... 20 psi – 125 psi

    Operating Temperatures

    Minimum/Maximum ..................................................................... 40 – 110 F

    Meter

    Accuracy ...................................................................................... ± 5%
    Flow Rate Range.......................................................................... 0.25 – 34 gpm
    Gallon Range................................................................................ 20 – 50,000 gallons Totalizer ....................................................................................... 1000 - 9,999,000 gallons

    Dimensions & Weight

    Distributor Pilot ...................................................... 1.32" OD Pipe (1" NPS) or 32mm OD Drain Line ..................................................................................... 3⁄4” or 1” NPT
    Brine Line .................................................................................
    3/8” or 1⁄2” OD Poly Tube
    Mounting Base............................................................................. 2 1⁄2” - 8 NPSM
    Height From Top Of Tank............................................................. 7 3/8”                                     Weight .......................................................................................... 4.5 lbs.

    Electrical Specifications                                                              AC Adapter

    Supply Voltage .............................................................................  120V AC              Supply Frequency .........................................................................    60 Hz                 Output Voltage .............................................................................   12V AC               Output Current .............................................................................   500mA

    Tank Applications

    Water Softener ............................................................................. 6"- 22" diameter           Water Filter (3) .............................................................................. 6"- 24" diameter

    Cycles of Operation

    Cycle                                                                                    Range of times minutes
    1. Backwash 1
    st (upflow) ..............................................................  6 - 12                           2. Regenerate Draw/Slow Rinse (downflow) ................................. 45 - 75                         3. Backwash 2nd (upflow)..............................................................  3 - 12                         4. Fast Rinse (downflow) ...............................................................  3 - 8                           5. Regenerant Refill (in service with treated water)........................  As Programmed         6. Service (downflow)
